What Are LED Components
LED components are individual hardware elements that together form a complete LED display system.
Each component performs a specific role in the generation, processing, display, and support of a digital visual image.
The operation of a high-tech LED screen depends on the performance, reliability, and coordinated integration of these components.
The quality of LEDs, control systems, power distribution, and structural support directly affect image clarity, color accuracy, brightness stability, and long-term durability.
LED components are used in indoor and outdoor digital advertising, broadcast studios, sports arenas, retail environments, transport hubs, entertainment facilities, and architectural media facades.
Manufacturers
The products of leading LED component manufacturing companies are used in the advertising monitors produced by us.
The components can be supplied both in the form of a fully assembled screen, as well as in individual form.

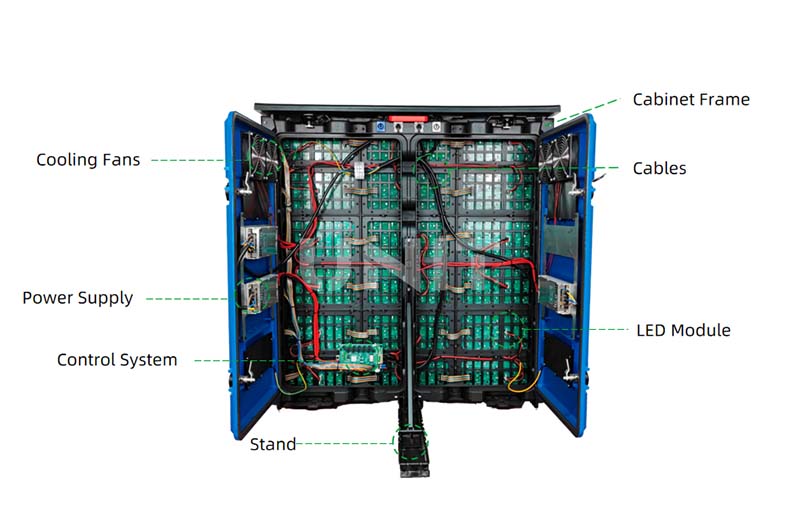

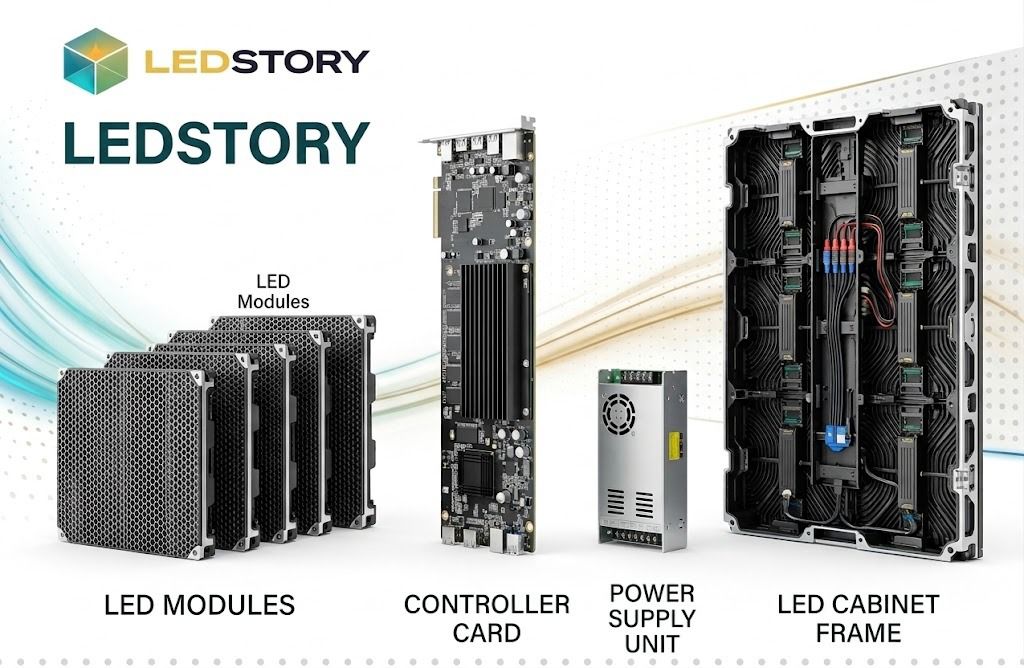

The main components of an LED screen and their functions
At LEDSTORY, we don't just sell screens; we service them. By partnering with a network of trusted global manufacturers, we ensure that each internal part meets elite performance standards. Our service goes beyond basic repair — we offer a specialized component replacement service to keep your investment running smoothly throughout its entire life cycle.
Main visual components

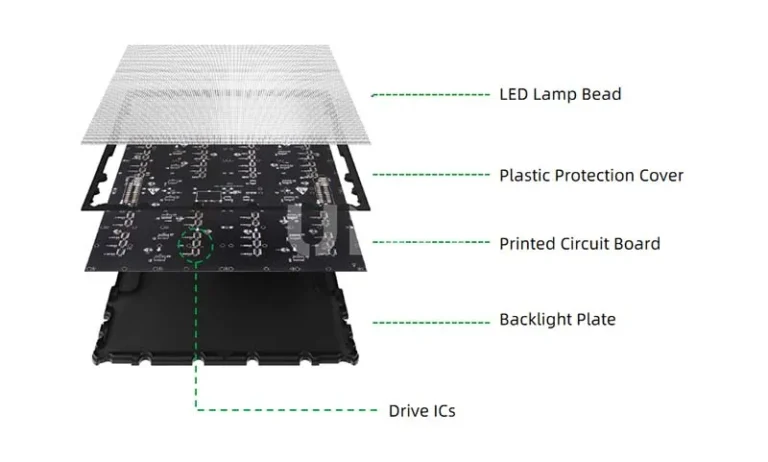

LED modules (panels): The fundamental building blocks of the screen. They house the PCB, LED lamps, and driver integrated circuits; they represent the main surface where the image is generated.

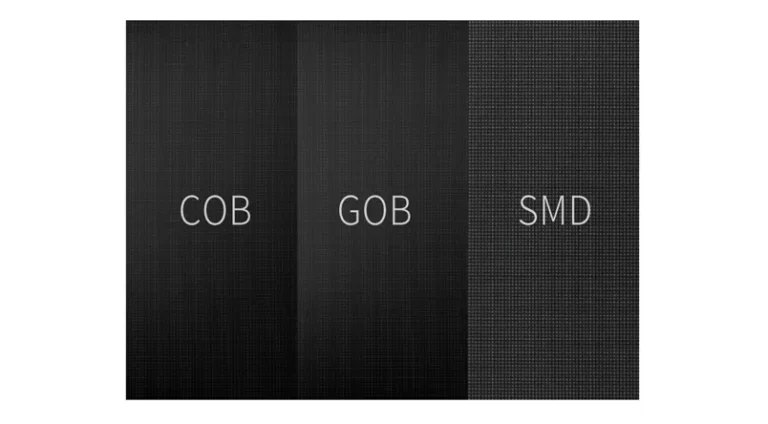

LED lamps (SMD or DIP): These diodes represent the actual light source. They determine the screen's brightness, color uniformity, and viewing angles. We use premium quality lamps for maximum durability and refresh rates.
Mask / Module front cover: A protective layer that shields the delicate LEDs from physical impact, while simultaneously improving image contrast and reducing surface reflection.
Signal processing and intelligence
Sending cards / controllers: The "brain" of the system. It receives the video signal from your source and converts it into data that is understandable for the screen, managing scaling and brightness.

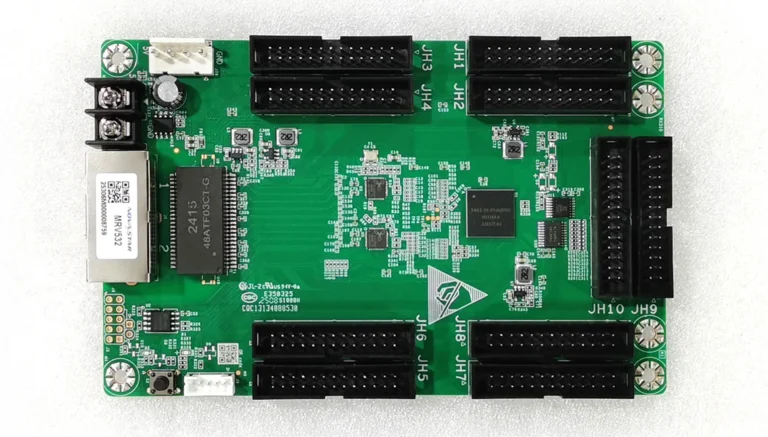

Receiving cards: Placed in each cabinet; they receive data from the controller and distribute them to specific modules for perfect pixel synchronization.
Video processor / scaler: An essential tool for professional devices; used to manage multi-window layouts, improve image quality, and switch seamlessly between input signals of different formats.
Driver integrated circuits (Current Drivers): These specialized chips regulate the electrical current to the LEDs, which avoids flickering and ensures smooth color transitions when displaying high-definition content.
Power and connection

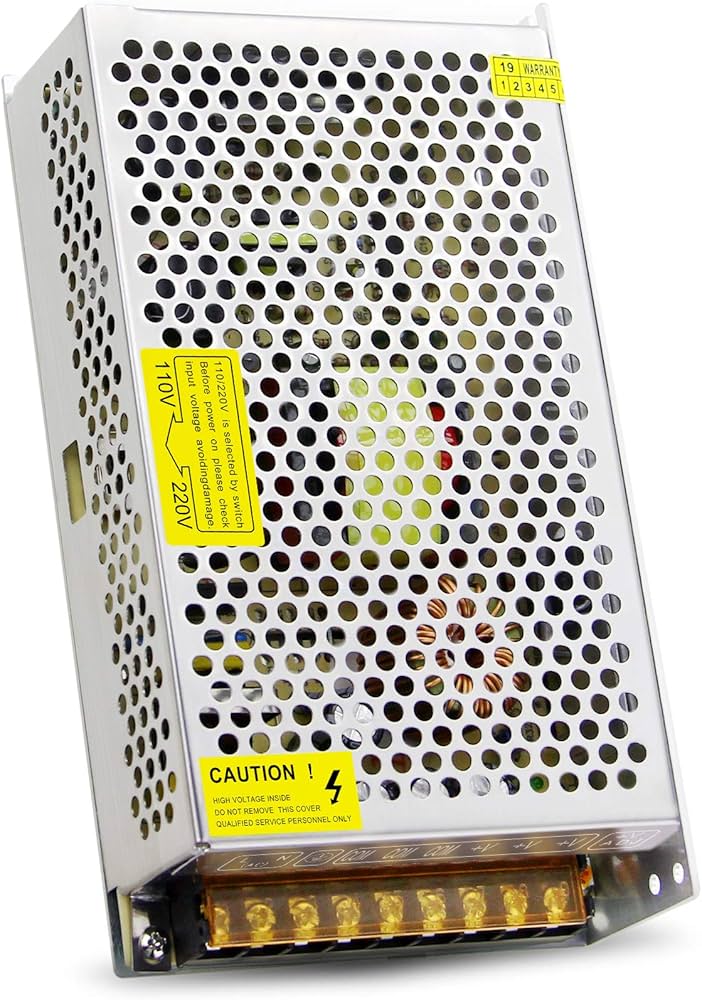

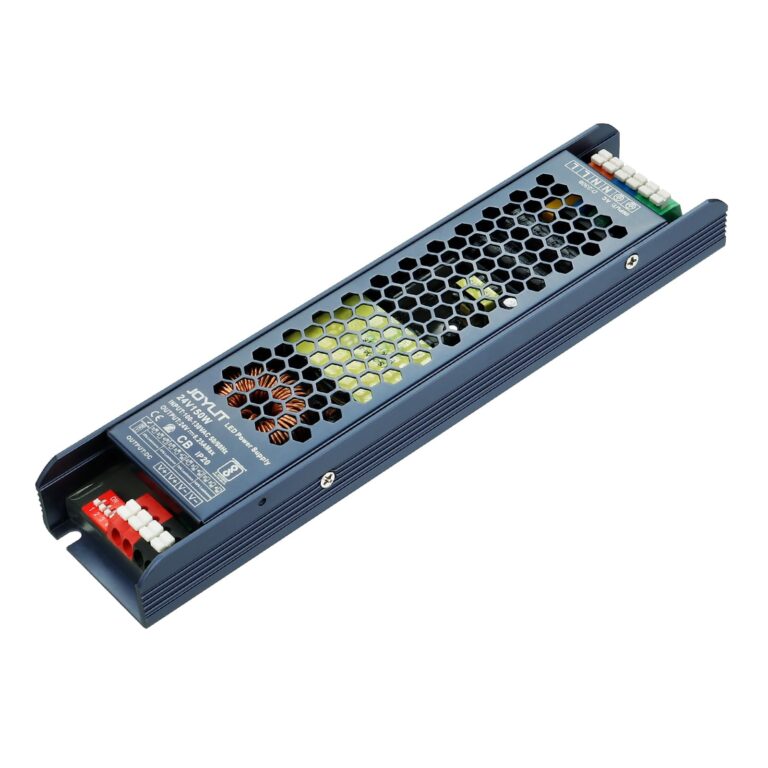

Power supplies (PSUs): High-efficiency units that convert standard alternating current into stable, low-voltage direct current, which is essential for sensitive LED electronics.
Data and power cables: Industrial-grade Ethernet and ribbon cables ensure high-speed signal integrity, while heavy-duty power wiring prevents overheating.
Hub cards: Act as an internal distribution node that organizes the flow of data and energy from the receiving cards to individual modules to arrange the internal wiring.
Infrastructure and protection

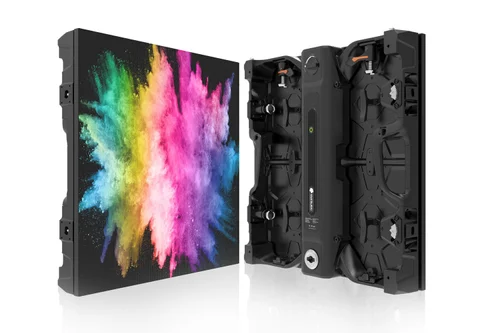

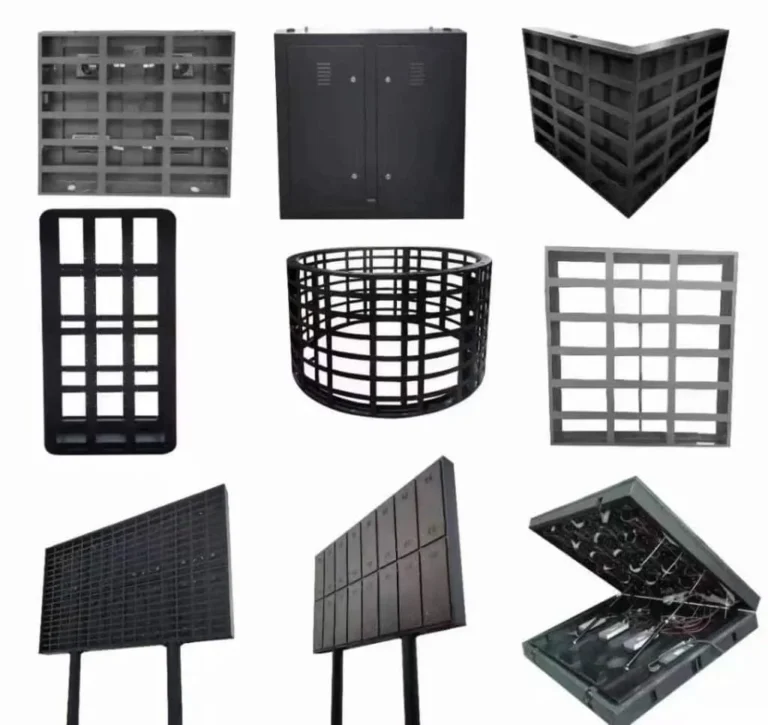

LED cabinets: The structural frame that protects internal components. It provides thermal management and precise alignment, which is essential to achieve a uniform image without gaps.
Cooling components: Integrated fans and ventilation channels designed to maintain optimal temperature, which is critical for the lifespan of LEDs.
Mounting systems: Specially designed frames and hanging hardware that allow the screen to be securely installed on walls, hanging trusses, or freestanding structures.
Management and calibration software: Proprietary tools used for pixel-level color calibration, remote diagnostics, and content scheduling.
